Bridge structures A 40

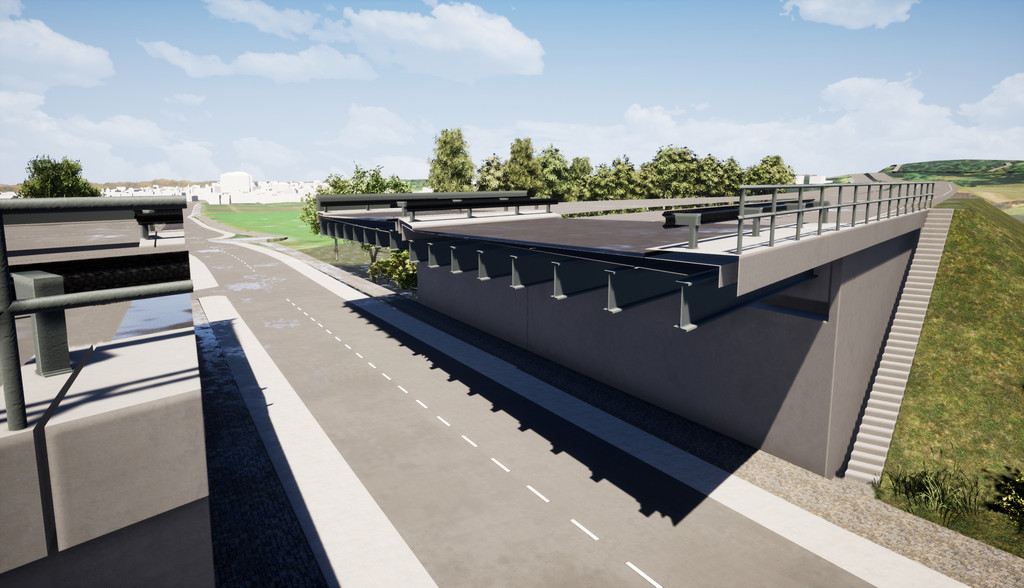

BIM pilot project for the replacement new construction of two bridges at the motorway A 40 between Moers and Venlo

Landesbetrieb Straßenbau NRW is planning the replacement new construction of two bridge structures at the motorway A 40 between Moers and Venlo.

This is the bridge structure at the junction Straelen, at which the federal road B 221 crosses the motorway A 40, and the overpassing of the former B 221, which crosses the Louisenberger Street.

Both bridges are to be dismantled and to be replaced by new structures.

ZPP is commissioned with the processing of the following application cases within the scope of project and structural planning for the BIM pilot project:
_Condition assessment
_Variant analysis
_2D plan derivation (RAB-ING)
_Cost estimation and cost calculation according to AKVS
_Bill of quantity, tender and contract awarding
_4D construction time-/schedule planning

Landesbetrieb Straßenbau NRW
Period of service
since 2018
Straelen, Germany
  • Consulting
  • Planning
  • Building Information Modeling (BIM)
